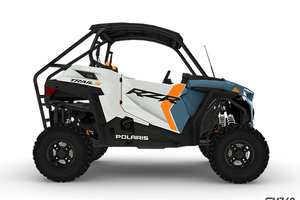

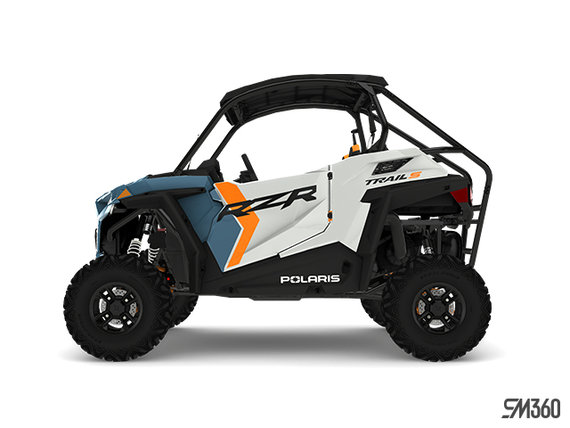

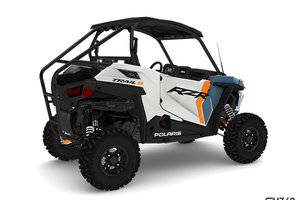

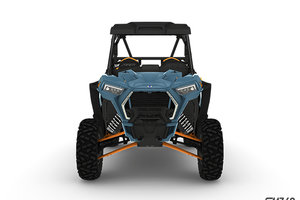

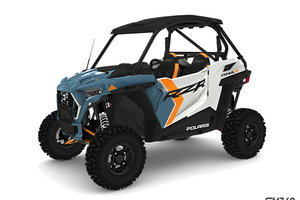

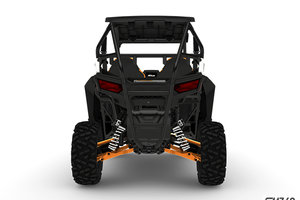

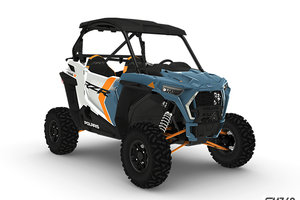

2024 RZR Trail S 1000 Ultimate

Available from $28,369 *

Exterior Color

STORM BLUE / WHITE LIGHTNING

LEGEND: S = Series O = Optional

Brakes

S Parking Brake - Park In-Transmission

S Front/Rear Brakes - 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers

ENGINE/DRIVETRAIN

S Cooling - Liquid

S Fuel System/Battery - Electronic Fuel Injection

S Transmission/Final Drive - Automatic PVT P/R/N/L/H

S Engine Type - 4-Stroke DOHC Twin Cylinder

S Horsepower - 100 HP

S Cylinders Displacement -999 cc

S Drive System Type - High Performance True On-Demand AWD/2WD

Dimensions

S Bed Box Dimensions (L x W x H) - 20.7 x 37 x 7.9 in (52.5 x 94 x 20 cm)

S Wheelbase - 79 in (200.7 cm)

S Ground Clearance - 12.5 in (31.8 cm)

S Box Capacity - 300 lb (136 kg)

S Fuel Capacity - 9.5 gal (35.9 L)

S Overall Vehicle Size (L x W x H) - 110.9 x 60 x 69.3" (282 x 152.4 x 176 cm)

S Payload Capacity - 740 lb (335,7 kg)

S Estimated Dry Weight -1360 lb (616.9 kg)

S Hitch Towing Rating - 1,500 lb (680.4 kg)

Tires/Wheels

S Wheels - Cast Aluminum

S Rear Tires - 27 x 11-12; Trailmaster A/T

S Front Tires - 27 x 9-12; Trailmaster A/T

Additional Specifications

S Cargo System - Lock & Ride

S Hitch Type - Standard 1.25 in (3.2 cm) Receiver

S Electronic Power Steering

S Doors - Full Door

S Lighting - Front Blacked Out Signature White LED Low/High with Accent Lights & Red LED Tail/Brake Lights

S Instrumentation -7” Glove-Touch Display: Built-In GPS, Group Ride (Cell and Non-Cell Communications), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio Capable, In-Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate Stage 2 Audio, Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet + 12V Power Plug

S Seat Type - Bolstered Bucket Seats with Toolless Driver Seat Slider and Standard Passenger Seat Slider (Tool Required for Adjustment on Passenger Seat)

S Other Standard Features -Poly Roof, RIDE COMMAND, Rear Camera, Rockford Fosgate Stage 2 Audio, Adjustable Tilt Steering, Near Field Communication Technology, Polaris P.A.S.S.

Suspension

S Rear Suspension - Dual A-Arm with Stabilizer Bar and 13.2 in (33.5 cm) Wheel Travel

S Rear Shocks -2 in Walker Evans Needle Shocks with 16 Position Adjustable Clickers

S Frontr Shocks -2 in Walker Evans Needle Shocks with 16 Position Adjustable Clickers

S Front Suspension - Dual A-Arm with Stabilizer Bar and 12.25 in (31.1 cm) Wheel Travel
